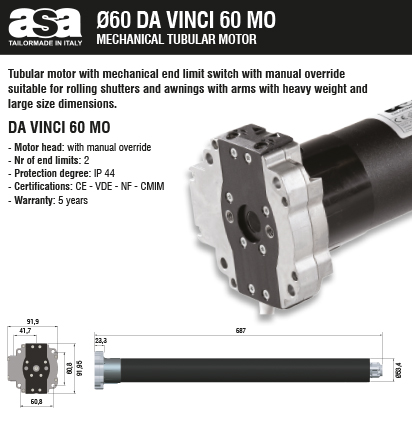

Tubular motor with mechanical end limit switch with manual override suitable for rolling shutters and awnings with arms.
Technical data:
- Technical features - head with manual ovveride
CODE DESCRIPTION TORQUE SPEED POWER SUPPLY LS ROUNDS CONSUMPTION LENGHT MOTOR WEIGHT 2252151 DAVINCI 60 MO 80/12 G1 A1 B1 80 Nm 12 rpm 230 V ~/50 Hz 27 290 W 687 mm 4,75 Kg 2253139 DAVINCI 60 MO 100/12 G1 A1 B1 100 Nm 12 rpm 230 V ~/50 Hz 27 350 W 687 mm 4,85 Kg 2254135 DAVINCI 60 MO 120/12 G1 A1 B1 120 Nm 12 rpm 230 V ~/50 Hz 27 400 W 687 mm 5,00 Kg - Brackets - head with manual override
- Adapters
CODE DESCRIPTION TUBE DIMENSION APPLICATIONS 2205028 Adapters for octagonal rolling tube Ø 70 mm Rolling shutter 2205029 Adapters for round rolling tube Ø 102 x 2 mm Rolling shutter 2205030 Adapters for deprat rolling tube - F5039 Ø 89 x 1 mm Awnings 2205031 Adapters for ZF80 rolling tube Ø 80 x 1/1,2 mm Rolling shutter 2205032 Adapters for round with groove rolling tube Ø 85 x 1,2 mm Awnings 2205033 Adapters for round with 14 mm groove rolling tube Ø 78 mm Awnings 2205034 Adapters for round rolling tube Ø 70 x 1,5 mm Awnings - Mechanical accessories for motors with manual override
- Mechanical accessories
- Switches
CODE DESCRIPTION 2210003 Temporary position switch (wall mounted) 2210004 Temporary position switch (surface mounted) 2210007 Fixed position switch 2210008 Temporary position switch 2210011 Waterproof momentary position switch (surface mounted) 2210012 Temporary position mini switch (surface mounted) 2210013 Fixed position mini switch (surface mounted) - Control unit
CODE DESCRIPTION OPERATING FREQUENCY 2211149 Go-er platine External receiver for radio control of wired motors specific for cassette application (1 motor for each receiver) 433,42 MHz 2211016 Go-er External receiver for radio control of wired motors (1 motor for each receiver) 433,42 MHz 2212004 QMC4 - Control unit for mechanical wired motors connected in parallel (max 4 motors for each control unit) - My Higgins - home automation
CODE DESCRIPTION COLOUR OPERATING FREQUENCY TECHNOLOGY PROT. DEGREE 2211235 MY HIGGINS RTW White 433,42 MHz MHz Rolling code IP30
Download:
